Python 机器学习

Chapter 2 - Training Machine Learning Algorithms for Classification

训练机器学习算法从而实现分类

Note that the optional watermark extension is a small IPython notebook plugin that I developed to make the code reproducible. You can just skip the following line(s).

%load_ext watermark%watermark -a "Sebastian Raschka" -u -d -p numpy,pandas,matplotlib

Sebastian Raschka last updated: 2019-12-04 numpy 1.17.4pandas 0.25.3matplotlib 3.1.0

The use of watermark is optional. You can install this Jupyter extension via

conda install watermark -c conda-forge

or

pip install watermark

For more information, please see: https://github.com/rasbt/watermark.

Overview

from IPython.display import Image

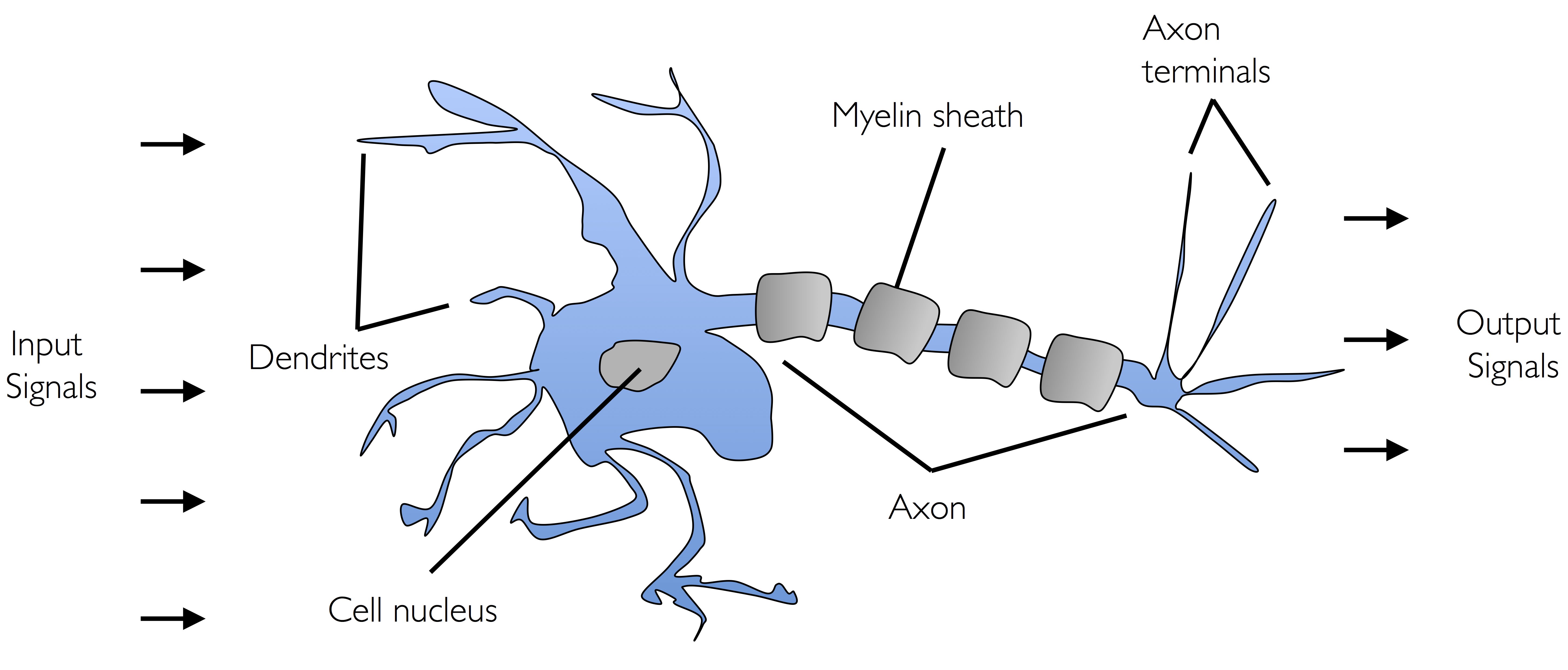

Artificial neurons - a brief glimpse into the early history of machine learning

人工神经元，简要回顾一下机器学习的早期历史

Image(filename='./images/02_01.png', width=500)

%pwd

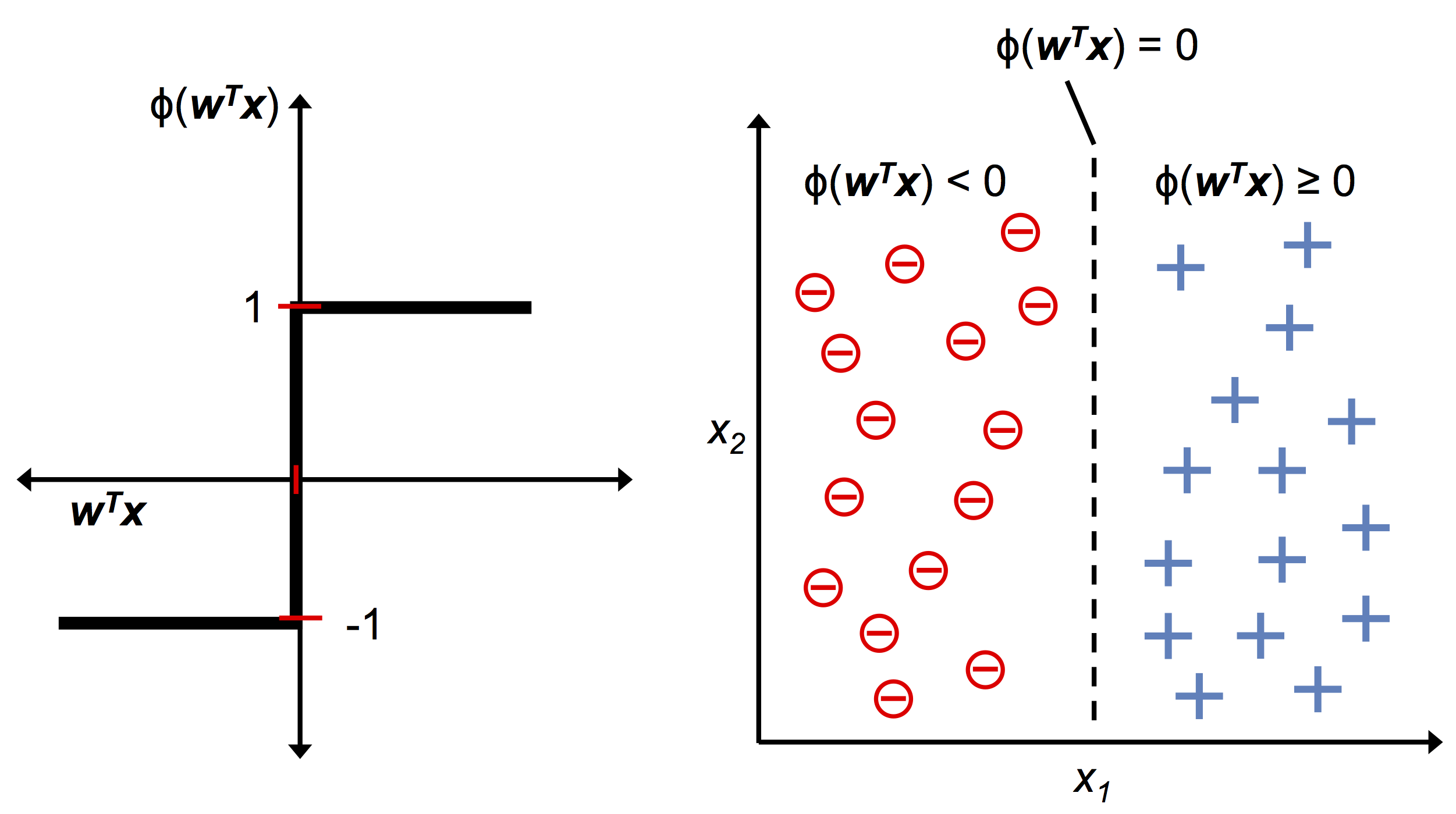

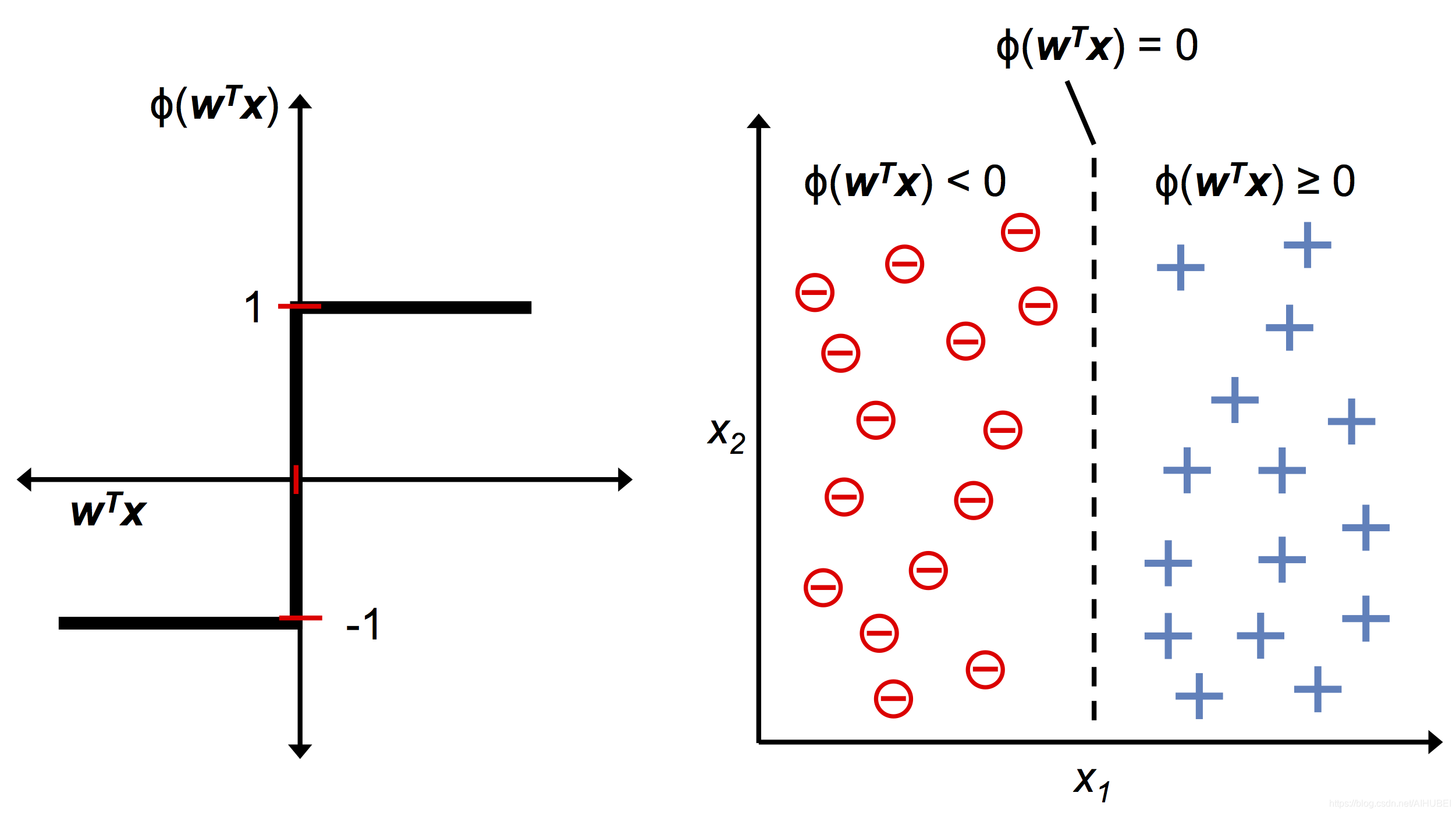

The formal definition of an artificial neuron

一个人工神经元的正式定义

Image(filename='./images/02_02.png', width=500)

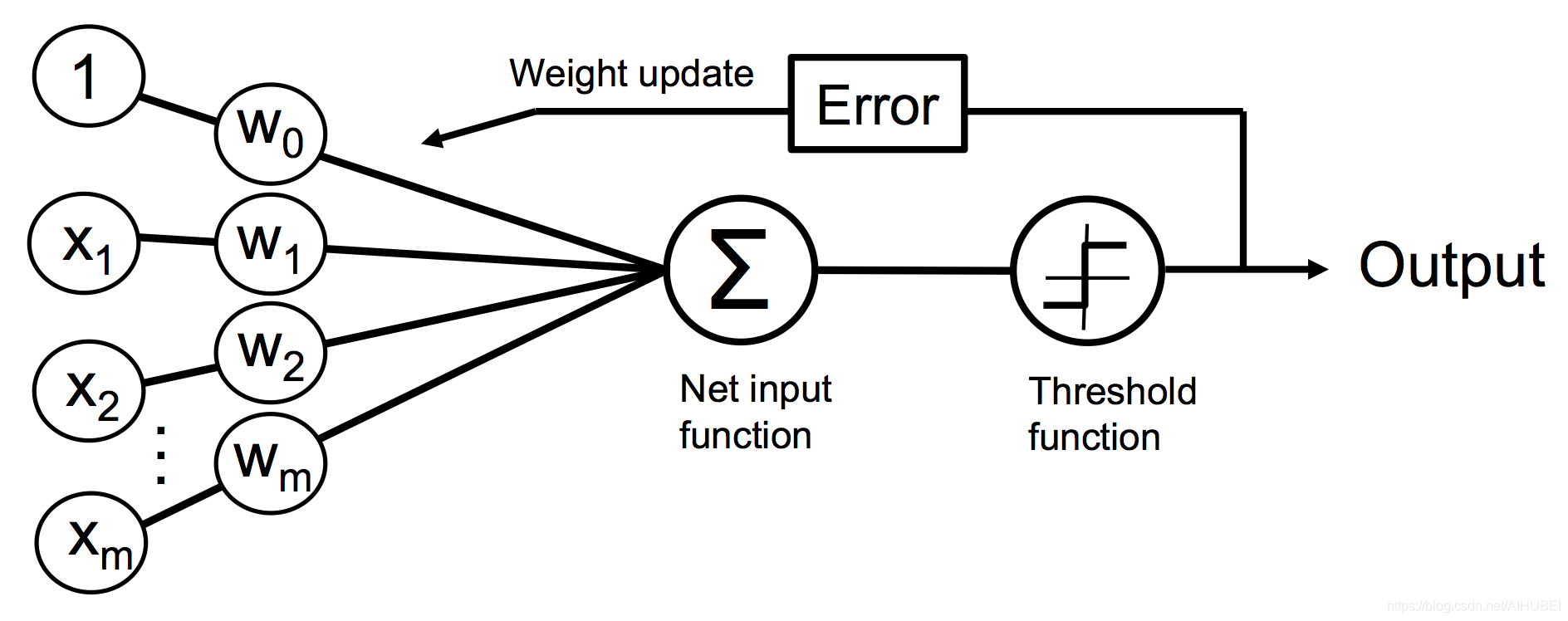

The perceptron learning rule

感知机的学习规则

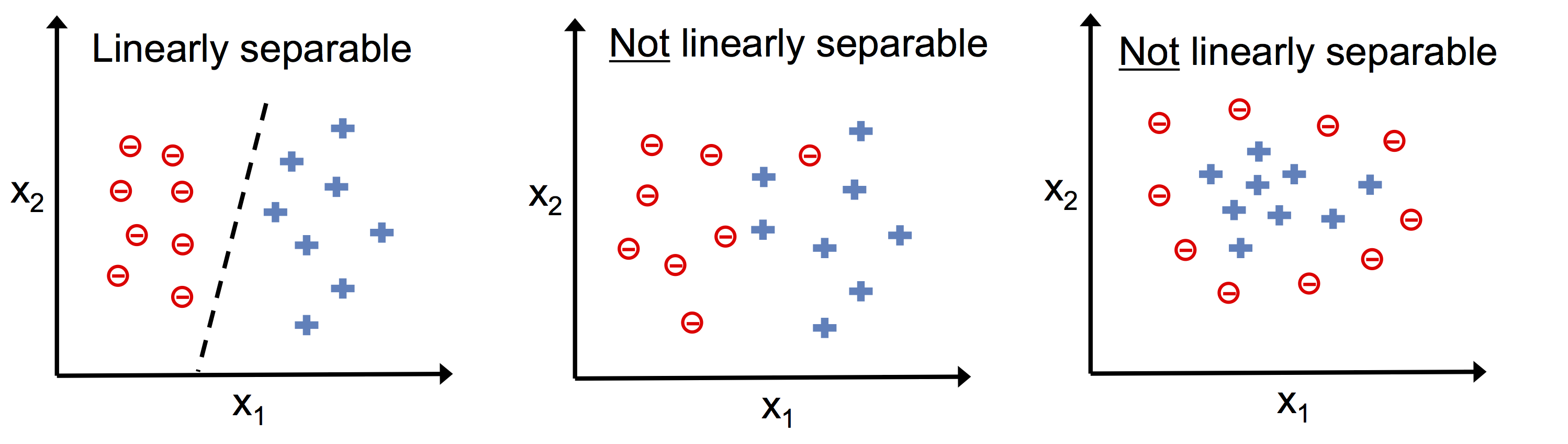

Image(filename='./images/02_03.png', width=600)

Image(filename='./images/02_04.png', width=600)

Implementing a perceptron learning algorithm in Python

使用python实现一个感知机学习算法

An object-oriented perceptron API

一个面向对象的感知器API

import numpy as npclass Perceptron(object):    """Perceptron classifier.    Parameters    ------------    eta : float      Learning rate (between 0.0 and 1.0)    n_iter : int      Passes over the training dataset.    random_state : int      Random number generator seed for random weight      initialization.    Attributes    -----------    w_ : 1d-array      Weights after fitting.    errors_ : list      Number of misclassifications (updates) in each epoch.    """    def __init__(self, eta=0.01, n_iter=50, random_state=1):        self.eta = eta        self.n_iter = n_iter        self.random_state = random_state    def fit(self, X, y):        """Fit training data.        Parameters        ----------        X : {array-like}, shape = [n_examples, n_features]          Training vectors, where n_examples is the number of examples and          n_features is the number of features.        y : array-like, shape = [n_examples]          Target values.        Returns        -------        self : object        """        rgen = np.random.RandomState(self.random_state)        self.w_ = rgen.normal(loc=0.0, scale=0.01, size=1 + X.shape[1])        self.errors_ = []        for _ in range(self.n_iter):            errors = 0            for xi, target in zip(X, y):                update = self.eta * (target - self.predict(xi))                self.w_[1:] += update * xi                self.w_[0] += update                errors += int(update != 0.0)            self.errors_.append(errors)        return self    def net_input(self, X):        """Calculate net input"""        return np.dot(X, self.w_[1:]) + self.w_[0]    def predict(self, X):        """Return class label after unit step"""        return np.where(self.net_input(X) >= 0.0, 1, -1)

v1 = np.array([1, 2, 3])v2 = 0.5 * v1np.arccos(v1.dot(v2) / (np.linalg.norm(v1) * np.linalg.norm(v2)))

0.0

Training a perceptron model on the Iris dataset

使用鸢尾花数据集训练一个感知机模型

…

Reading-in the Iris data

读取Iris数据集

import osimport pandas as pds = 'https://archive.ics.uci.edu/ml/machine-learning-databases/iris/iris.data'print('URL:', s)df = pd.read_csv(s,                 header=None,                 encoding='utf-8')df.tail()

URL: https://archive.ics.uci.edu/ml/machine-learning-databases/iris/iris.data

	0	1	2	3	4
145	6.7	3.0	5.2	2.3	Iris-virginica
146	6.3	2.5	5.0	1.9	Iris-virginica
147	6.5	3.0	5.2	2.0	Iris-virginica
148	6.2	3.4	5.4	2.3	Iris-virginica
149	5.9	3.0	5.1	1.8	Iris-virginica

---

Note:

You can find a copy of the Iris dataset (and all other datasets used in this book) in the code bundle of this book, which you can use if you are working offline or the UCI server at https://archive.ics.uci.edu/ml/machine-learning-databases/iris/iris.data is temporarily unavailable. For instance, to load the Iris dataset from a local directory, you can replace the line

df = pd.read_csv('https://archive.ics.uci.edu/ml/'    'machine-learning-databases/iris/iris.data', header=None)

by

df = pd.read_csv('your/local/path/to/iris.data', header=None)

df = pd.read_csv('iris.data', header=None, encoding='utf-8')df.tail()

	0	1	2	3	4
145	6.7	3.0	5.2	2.3	Iris-virginica
146	6.3	2.5	5.0	1.9	Iris-virginica
147	6.5	3.0	5.2	2.0	Iris-virginica
148	6.2	3.4	5.4	2.3	Iris-virginica
149	5.9	3.0	5.1	1.8	Iris-virginica

---

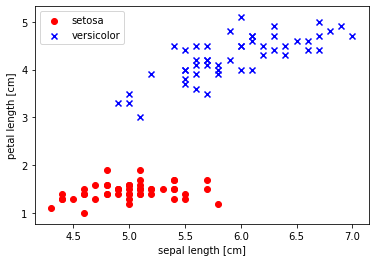

Plotting the Iris data

绘制Iris 数据的图示示例

提取前100类别标签的数据，其中Iris-setosa和Iris-versicolor各50.类似的从这100条样本中提取第一（sepal length）和第三（petal length)列所对应的特征列，然后将其分派到特征矩阵中，这样一来我们就可以通过二维的散点图来进行可视化。

%matplotlib inlineimport matplotlib.pyplot as pltimport numpy as np# select setosa and versicolory = df.iloc[0:100, 4].valuesy = np.where(y == 'Iris-setosa', -1, 1)# extract sepal length and petal lengthX = df.iloc[0:100, [0, 2]].values# plot dataplt.scatter(X[:50, 0], X[:50, 1],            color='red', marker='o', label='setosa')plt.scatter(X[50:100, 0], X[50:100, 1],            color='blue', marker='x', label='versicolor')plt.xlabel('sepal length [cm]')plt.ylabel('petal length [cm]')plt.legend(loc='upper left')# plt.savefig('images/02_06.png', dpi=300)plt.show()

Training the perceptron model

训练感知机模型

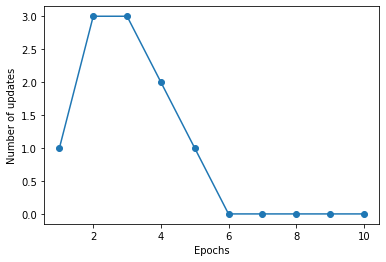

ppn = Perceptron(eta=0.1, n_iter=10)ppn.fit(X, y)plt.plot(range(1, len(ppn.errors_) + 1), ppn.errors_, marker='o')plt.xlabel('Epochs')plt.ylabel('Number of updates')# plt.savefig('images/02_07.png', dpi=300)plt.show()

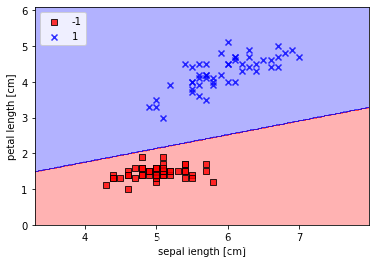

A function for plotting decision regions

一个绘制决策决策区域的函数

首先通过ListedColormap来创建一系列的颜色和标记同时创建一个调色板colormap,然后我们确定特征的最小值和最大值，通过numpy meshgris 函数，并使用这些特征向量创建一对网格阵列xx1，xx2,由于我们在两个特征维度上训练了感知器分类器，因此我们需要展平栅格阵列并创建一个矩阵，该矩阵的列数与Iris训练子集相同，因此我们可以使用predict 方法来预测类别标签z,

from matplotlib.colors import ListedColormapdef plot_decision_regions(X, y, classifier, resolution=0.02):    # setup marker generator and color map    markers = ('s', 'x', 'o', '^', 'v')    colors = ('red', 'blue', 'lightgreen', 'gray', 'cyan')    cmap = ListedColormap(colors[:len(np.unique(y))])    # plot the decision surface    # 分别使用样本的两个特征值创建图像和横轴和纵轴    x1_min, x1_max = X[:, 0].min() - 1, X[:, 0].max() + 1    x2_min, x2_max = X[:, 1].min() - 1, X[:, 1].max() + 1    xx1, xx2 = np.meshgrid(np.arange(x1_min, x1_max, resolution),                           np.arange(x2_min, x2_max, resolution))    Z = classifier.predict(np.array([xx1.ravel(), xx2.ravel()]).T)    # 给每个分类中的样本分配不同的颜色    Z = Z.reshape(xx1.shape)    plt.contourf(xx1, xx2, Z, alpha=0.3, cmap=cmap)    plt.xlim(xx1.min(), xx1.max())    plt.ylim(xx2.min(), xx2.max())    # plot class examples    for idx, cl in enumerate(np.unique(y)):        plt.scatter(x=X[y == cl, 0],                     y=X[y == cl, 1],                    alpha=0.8,                     c=colors[idx],                    marker=markers[idx],                     label=cl,                     edgecolor='black')

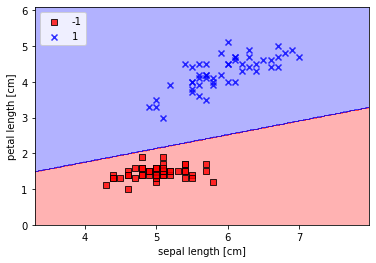

plot_decision_regions(X, y, classifier=ppn)plt.xlabel('sepal length [cm]')plt.ylabel('petal length [cm]')plt.legend(loc='upper left')# plt.savefig('images/02_08.png', dpi=300)plt.show()

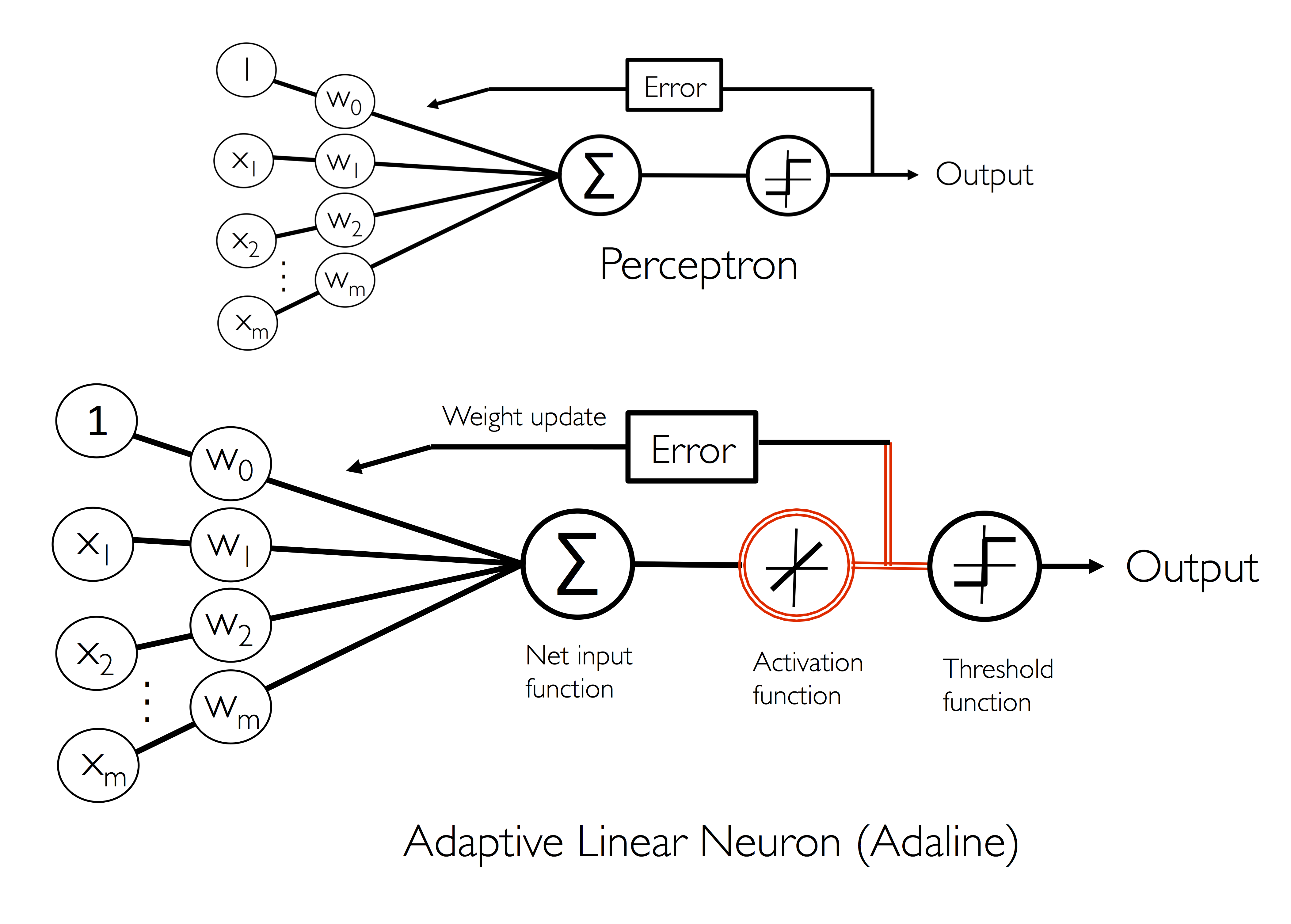

Adaptive linear neurons and the convergence of learning

自适应线性神经元和学习的收敛性

…

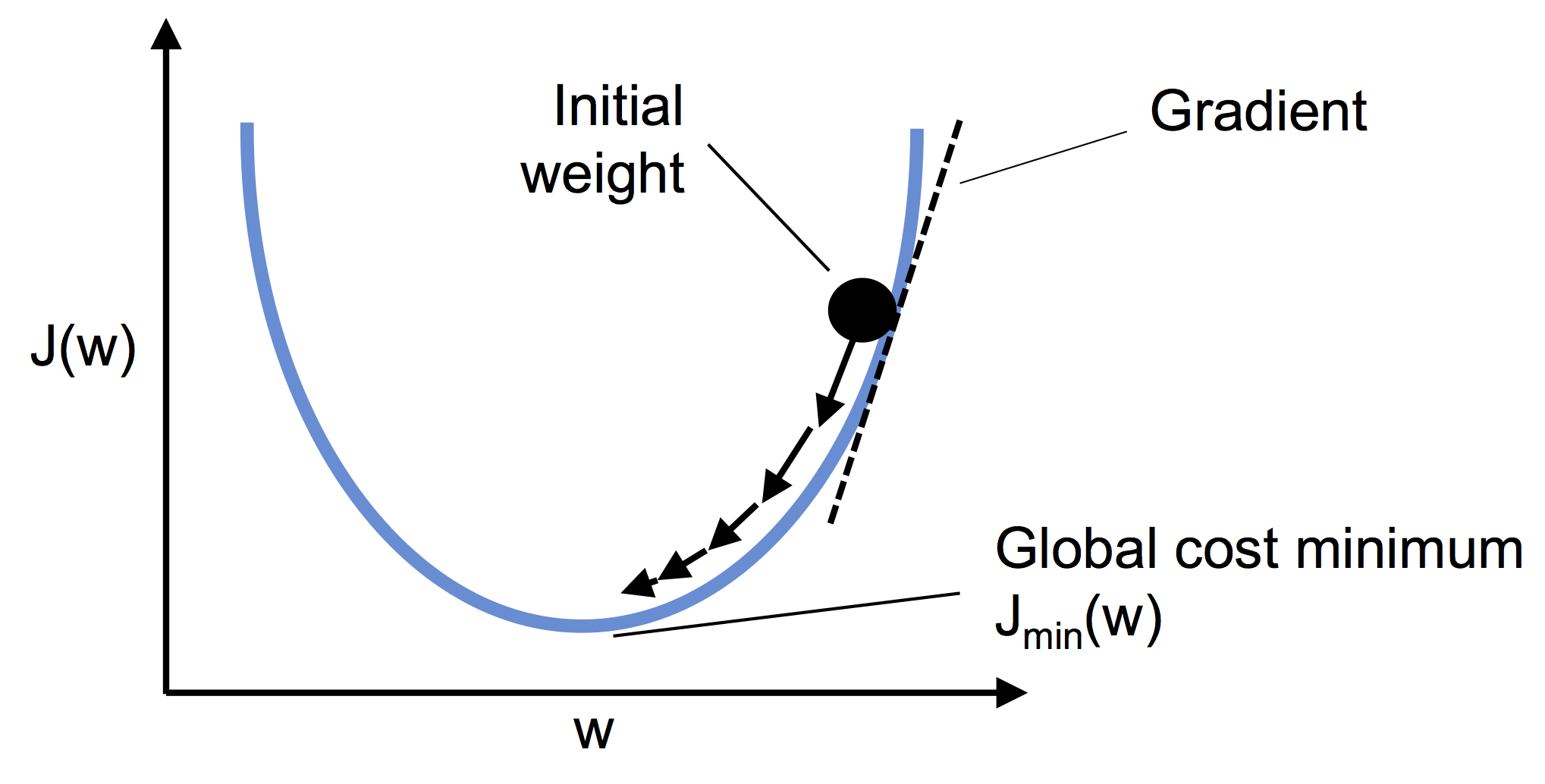

Minimizing cost functions with gradient descent

通过梯度下降来最小化损失函数

Image(filename='./images/02_09.png', width=600)

Image(filename='./images/02_10.png', width=500)

Implementing an adaptive linear neuron in Python

使用python实现一个自适应线性神经元

class AdalineGD(object):    """ADAptive LInear NEuron classifier.    Parameters    ------------    eta : float      Learning rate (between 0.0 and 1.0)    n_iter : int      Passes over the training dataset.    random_state : int      Random number generator seed for random weight      initialization.    Attributes    -----------    w_ : 1d-array      Weights after fitting.    cost_ : list      Sum-of-squares cost function value in each epoch.    """    def __init__(self, eta=0.01, n_iter=50, random_state=1):        self.eta = eta        self.n_iter = n_iter        self.random_state = random_state    def fit(self, X, y):        """ Fit training data.        Parameters        ----------        X : {array-like}, shape = [n_examples, n_features]          Training vectors, where n_examples is the number of examples and          n_features is the number of features.        y : array-like, shape = [n_examples]          Target values.        Returns        -------        self : object        """        rgen = np.random.RandomState(self.random_state)        self.w_ = rgen.normal(loc=0.0, scale=0.01, size=1 + X.shape[1])        self.cost_ = []        for i in range(self.n_iter):            net_input = self.net_input(X)            # Please note that the "activation" method has no effect            # in the code since it is simply an identity function. We            # could write `output = self.net_input(X)` directly instead.            # The purpose of the activation is more conceptual, i.e.,              # in the case of logistic regression (as we will see later),             # we could change it to            # a sigmoid function to implement a logistic regression classifier.            output = self.activation(net_input)            errors = (y - output)            self.w_[1:] += self.eta * X.T.dot(errors)            self.w_[0] += self.eta * errors.sum()            cost = (errors**2).sum() / 2.0            self.cost_.append(cost)        return self    def net_input(self, X):        """Calculate net input"""        return np.dot(X, self.w_[1:]) + self.w_[0]    def activation(self, X):        """Compute linear activation"""        return X    def predict(self, X):        """Return class label after unit step"""        return np.where(self.activation(self.net_input(X)) >= 0.0, 1, -1)

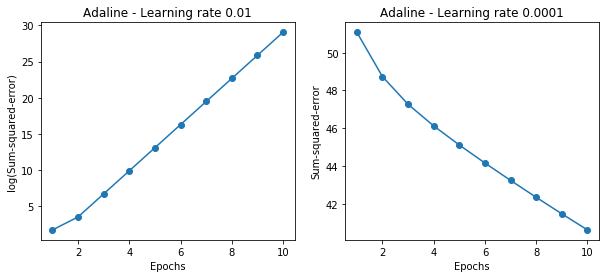

fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(10, 4))ada1 = AdalineGD(n_iter=10, eta=0.01).fit(X, y)ax[0].plot(range(1, len(ada1.cost_) + 1), np.log10(ada1.cost_), marker='o')ax[0].set_xlabel('Epochs')ax[0].set_ylabel('log(Sum-squared-error)')ax[0].set_title('Adaline - Learning rate 0.01')ada2 = AdalineGD(n_iter=10, eta=0.0001).fit(X, y)ax[1].plot(range(1, len(ada2.cost_) + 1), ada2.cost_, marker='o')ax[1].set_xlabel('Epochs')ax[1].set_ylabel('Sum-squared-error')ax[1].set_title('Adaline - Learning rate 0.0001')# plt.savefig('images/02_11.png', dpi=300)plt.show()

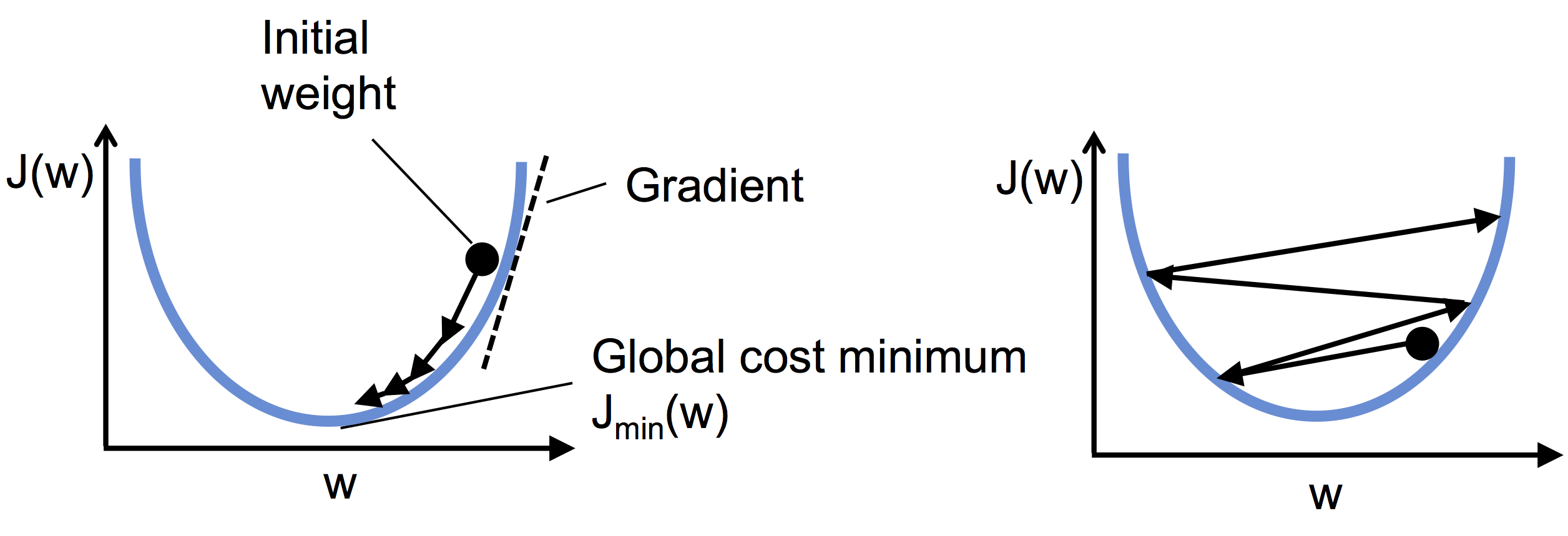

上面：左图显示出学习率挑选过大，犹如显示出学习率挑选太小，如下所示：左边的图显示出合适的学习率，损失逐渐减小，一直到全局最小；

右边的图显示出：学习率过大，越过了全局最小值；

Image(filename='./images/02_12.png', width=700)

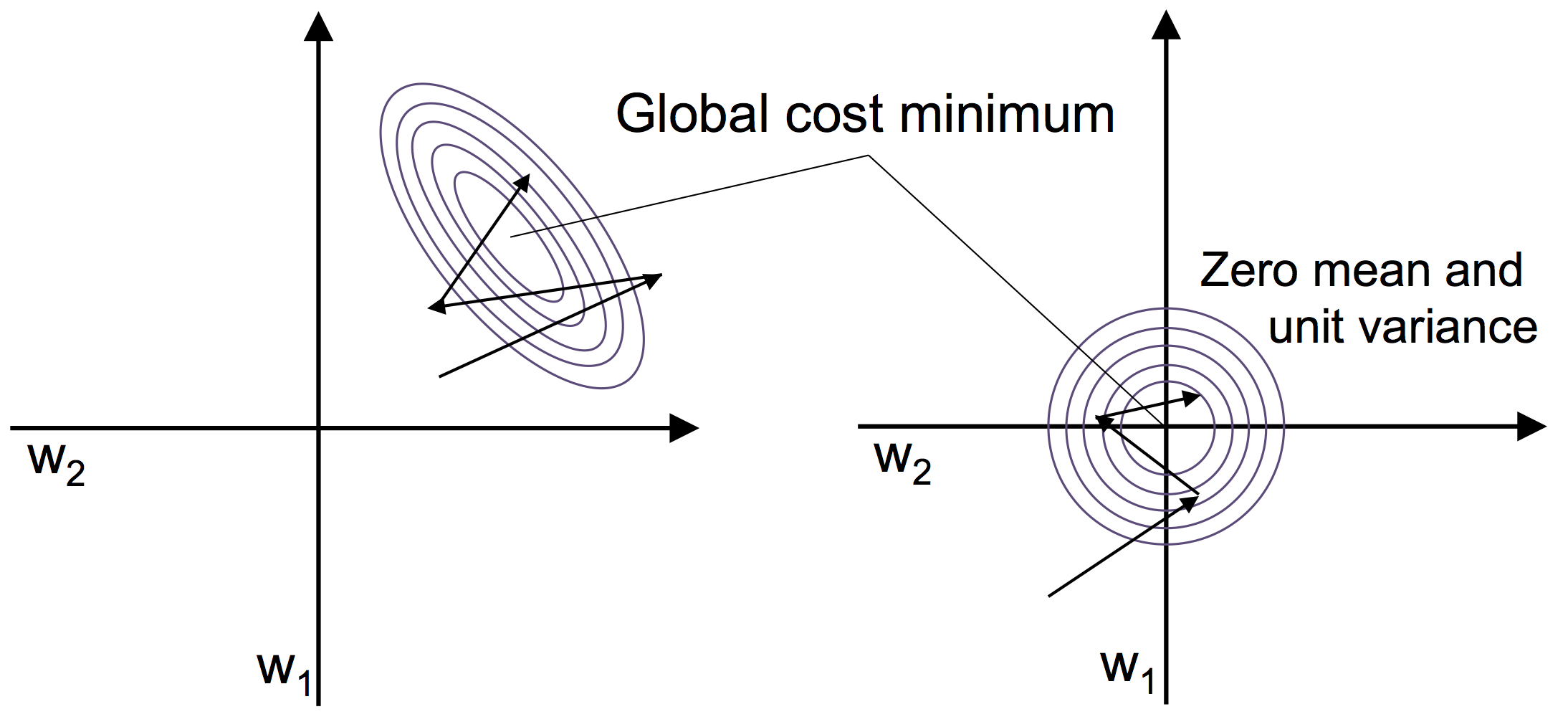

Improving gradient descent through feature scaling

通过特征缩放改进梯度下降

Image(filename='./images/02_13.png', width=700)

# standardize features# 标准化处理过程有助于实现梯度学习直到收敛更加快速，但是：他会使得原始数据集# 不呈正太分布X_std = np.copy(X)X_std[:, 0] = (X[:, 0] - X[:, 0].mean()) / X[:, 0].std()X_std[:, 1] = (X[:, 1] - X[:, 1].mean()) / X[:, 1].std()

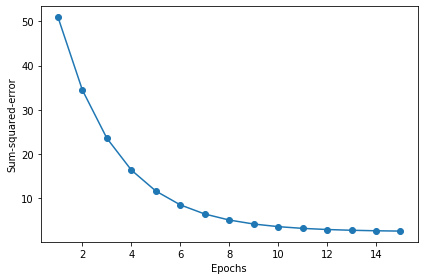

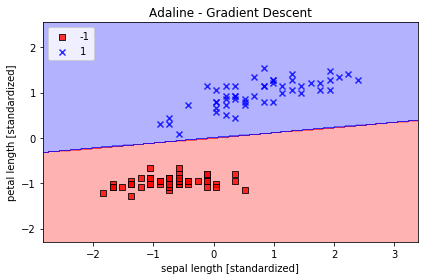

ada_gd = AdalineGD(n_iter=15, eta=0.01)ada_gd.fit(X_std, y)plot_decision_regions(X_std, y, classifier=ada_gd)plt.title('Adaline - Gradient Descent')plt.xlabel('sepal length [standardized]')plt.ylabel('petal length [standardized]')plt.legend(loc='upper left')plt.tight_layout()# plt.savefig('images/02_14_1.png', dpi=300)plt.show()plt.plot(range(1, len(ada_gd.cost_) + 1), ada_gd.cost_, marker='o')plt.xlabel('Epochs')plt.ylabel('Sum-squared-error')plt.tight_layout()# plt.savefig('images/02_14_2.png', dpi=300)plt.show()

Large scale machine learning and stochastic gradient descent

大规模机器学习和随机梯度下降

class AdalineSGD(object):    """ADAptive LInear NEuron classifier.    Parameters    ------------    eta : float      Learning rate (between 0.0 and 1.0)    n_iter : int      Passes over the training dataset.    shuffle : bool (default: True)      Shuffles training data every epoch if True to prevent cycles.    random_state : int      Random number generator seed for random weight      initialization.    Attributes    -----------    w_ : 1d-array      Weights after fitting.    cost_ : list      Sum-of-squares cost function value averaged over all      training examples in each epoch.            """    def __init__(self, eta=0.01, n_iter=10, shuffle=True, random_state=None):        self.eta = eta        self.n_iter = n_iter        self.w_initialized = False        self.shuffle = shuffle        self.random_state = random_state            def fit(self, X, y):        """ Fit training data.        Parameters        ----------        X : {array-like}, shape = [n_examples, n_features]          Training vectors, where n_examples is the number of examples and          n_features is the number of features.        y : array-like, shape = [n_examples]          Target values.        Returns        -------        self : object        """        self._initialize_weights(X.shape[1])        self.cost_ = []        for i in range(self.n_iter):            if self.shuffle:                X, y = self._shuffle(X, y)            cost = []            for xi, target in zip(X, y):                cost.append(self._update_weights(xi, target))            avg_cost = sum(cost) / len(y)            self.cost_.append(avg_cost)        return self    def partial_fit(self, X, y):        """Fit training data without reinitializing the weights"""        if not self.w_initialized:            self._initialize_weights(X.shape[1])        if y.ravel().shape[0] > 1:            for xi, target in zip(X, y):                self._update_weights(xi, target)        else:            self._update_weights(X, y)        return self    def _shuffle(self, X, y):        """Shuffle training data"""        r = self.rgen.permutation(len(y))        return X[r], y[r]        def _initialize_weights(self, m):        """Initialize weights to small random numbers"""        self.rgen = np.random.RandomState(self.random_state)        self.w_ = self.rgen.normal(loc=0.0, scale=0.01, size=1 + m)        self.w_initialized = True            def _update_weights(self, xi, target):        """Apply Adaline learning rule to update the weights"""        output = self.activation(self.net_input(xi))        error = (target - output)        self.w_[1:] += self.eta * xi.dot(error)        self.w_[0] += self.eta * error        cost = 0.5 * error**2        return cost        def net_input(self, X):        """Calculate net input"""        return np.dot(X, self.w_[1:]) + self.w_[0]    def activation(self, X):        """Compute linear activation"""        return X    def predict(self, X):        """Return class label after unit step"""        return np.where(self.activation(self.net_input(X)) >= 0.0, 1, -1)

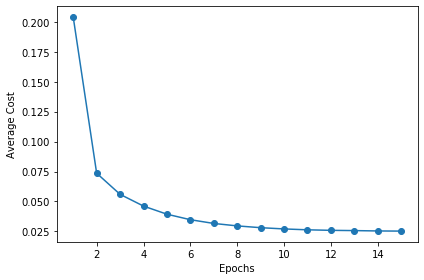

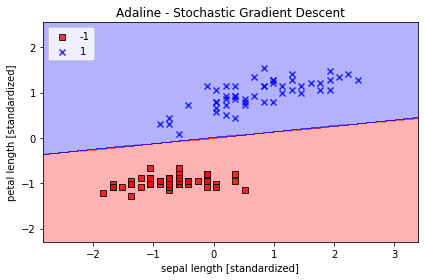

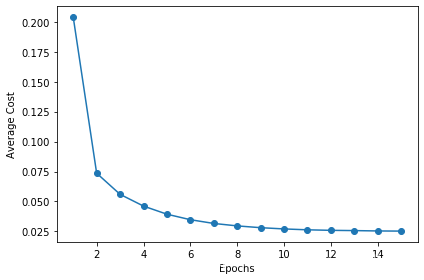

ada_sgd = AdalineSGD(n_iter=15, eta=0.01, random_state=1)ada_sgd.fit(X_std, y)plot_decision_regions(X_std, y, classifier=ada_sgd)plt.title('Adaline - Stochastic Gradient Descent')plt.xlabel('sepal length [standardized]')plt.ylabel('petal length [standardized]')plt.legend(loc='upper left')plt.tight_layout()# plt.savefig('images/02_15_1.png', dpi=300)plt.show()plt.plot(range(1, len(ada_sgd.cost_) + 1), ada_sgd.cost_, marker='o')plt.xlabel('Epochs')plt.ylabel('Average Cost')plt.tight_layout()# plt.savefig('images/02_15_2.png', dpi=300)plt.show()

ada_sgd.partial_fit(X_std[0, :], y[0])

<__main__.AdalineSGD at 0x1e018370508>

Summary

…

---

Readers may ignore the following cell

! python ../.convert_notebook_to_script.py --input ch02.ipynb --output ch02.py

[NbConvertApp] Converting notebook ch02.ipynb to script[NbConvertApp] Writing 16677 bytes to ch02.py
